Guitar Speaker Guide by Size, OHM Rating, and Amplifier
This guide covers guitar speakers by the amplifier brand, size, and OHM rating. This list is for guitar amplifier combos only and not for external speaker boxes. Have you ever wondered what speaker is in your guitar amplifier? Odds are you’ll find it below.
Putting this list together took a long, long time. If it was helpful, please share the post online or tag your friends if they need information about guitar speakers. If something is missing from the list, please let me know in the comments section.
The reason I wanted to put this guitar amplifier speaker size and ohm rating list together is that there is no other resource like it online. Use the browser search function to find the amplifier brand or model. This amplifier guitar speaker list was put together by going through user-manuals and checking the official websites for each brand. None of this information is a combination of data from third-party guitar forums.
This list is accurate, but I encourage you to double-check by inspecting your guitar amplifier or user manual as some models may vary.
Click each of the links provided above to scroll down to the appropriate section of the list.
Before Changing a Guitar Speaker
If you are considering changing speakers check out my guide on how to choose the perfect replacement speaker. It will help you get the correct replacement speaker the first time.
(Last updated September 18, 2019)
Fender Guitar Amplifier Combos Speaker Guide
This list pertains to all stock speakers and ratings found in Fender amplifiers.
| Fender Amplifier | Speaker Size | Speaker OHM Rating |
|---|---|---|
| Fender Hot Rod Deluxe (all versions) | 12" | 8 OHMS |
| Fender Blues Deluxe | 12" | 8 OHMS |
| Fender '65 Deluxe Reverb | 12" | 8 OHMS |
| Fender Deluxe Reverb Tone Master | 12" | 8 OHMS |
| Fender Twin Tone Master | 12" | 4 OHMS |
| Fender Princeton 65 Reissue | 10" | 8 OHMS |
| Fender Super-Reverb 65 Reissue | 10" | 2 OHMS |
| Fender '59 Bassman Reissue | 10" | 2 OHMS |
| Fender Super-Sonic 22 | 12" | 8 OHMS |
| Fender Super-Sonic 60 | 12" | 8 OHMS |
| Fender Mustang 3 V2 | 12" | 8 OHMS |
| Fender Mustang IV V2 | 12" | 8 OHMS |
| Fender Mustang GT-100 | 12" | 4 OHMS |
| Fender Mustang GT-200 | 12" | 4 OHMS |

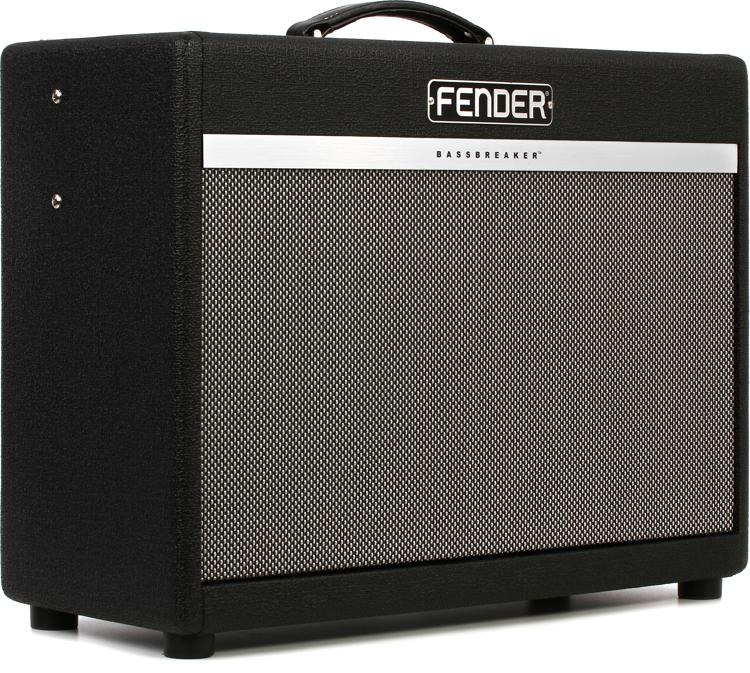

| Fender Bassbreaker 30R | 12" | 8 OHMS |
| Fender Bassbreaker 45 | 12" | 8 OHMS |
| Fender Bassbreaker 15 | 12" | 8 OHMS |
| Fender Champion 100 XL | 112" | 4 OHMS |
| Fender Champion 50 XL | 12" | 8 OHMS |
| Fender Champion 20 | 8" | 8 OHMS |
| Fender Champion 40 | 12" | 8 OHMS |
| Fender Champion 100 | 12" | 8 OHMS |
| Fender '65 Twin Reverb | 12" | 4 OHMS |
| Fender GB Twin Reverb | 12" | 4 OHMS |
| Fender '62 Princeton Chris Stapelton Edition | 12" | NOT LISTED |
| Fender '68 Custom Deluxe Reverb | 12" | 8 OHMS |
| Fender '68 Custom Princeton Reverb | 12" | 8 OHMS |
| Fender '68 Custom Twin Reverb | 12" | 4 OHMS |
| Fender '68 Vibrolux Reverb | 10" | 4 OHMS |
Marshall Amplifier Combos Speaker Guide
Please note this list is all referring to the default speaker in each amplifier. Some Marshall amplifiers have multiple OHM outputs you can connect different speakers to. Check out my Marshall Speaker Guide, for example.
| Marshall Amplifier | Speaker Size | Speaker OHM Rating |
|---|---|---|
| Marshall DSL20 (DSLCR / DSLC) | 12″ | 16 OHMS |
| Marshall DSL40 (DSLCR / DSLC) | 12″ | 16 OHMS |
| Marshall DSL5 (DSL5C) | 10″ | 16 OHMS |
| Marshall DSL1 (DSL1C) | 8″ | 16 OHMS |
| Marshall Origin 5 | 8″ | 16 OHMS |
| Marshall Origin 20C | 10″ | 16 OHMS |
| Marshall Origin 50C | 12″ | 16 OHMS |
| Marshall Studio Classic SC20C | 10″ | 16 OHMS |
| Marshall Studio Classic SV20C | 10″ | 16 OHMS |
| Marshall Studio Classic 2525C | 12″ | 16 OHMS |
| Marshall Studio Classic SC20C | 10″ | 16 OHMS |
| Marshall Studio Classic SV20C | 10″ | 16 OHMS |
| Marshall Studio Classic 2525C | 12″ | 16 OHMS |
| Marshall Code25 (Code 25) | 10″ | 4 OHMS |
| Marshall Code50 (Code 50) | 12″ | 4 OHMS |
| Marshall Code100 (Code 100) | 12″ | 4 OHMS |
| Marshall JVM410C | 12″ | 16 OHMS |
| Marshall JVM205C | 12″ | 16 OHMS |
| Marshall JVM210C | 12″ | 16 OHMS |
| Marshall JVM215C | 12″ | 8 OHMS |
| Marshall MG30FX | 10″ | 4 OHMS |
VOX Amplifiers on Sweetwater
VOX Guitar Amplifier Speaker Guide
have listed all of the VOX amplifiers I could find with speaker size and ohms information. If you are considering replacing a speaker for a VOX amplifier, this list is for you.
| Vox Amplifier | Speaker Size | Speaker OHM Rating |
|---|---|---|
| VOX AC10 CUSTOM | 10" | 16 OHMS |
| VOX AC10C1-VS Limited Edition | 10" | 16 OHMS |
| VOX AC15 Custom (AC15C1 / AC15C1X) | 12" | 16 OHMS |
| VOX AC15 CUSTOM TWIN | 12" | 16 OHMS |
| VOX AC15 Hand-Wired | 12" | 8 OHMS |
| VOX AC15C1-TTBM | 12" | 8 OHMS |
| VOX AC30 Custom | 12" | 8 OHMS |
| VOX AC30 Hand-Wired | 12" | 8 OHMS |
| VOX AC30 ONE TWELVE 112 | 12" | 16 OHMS |
| VOX AC4 HAND-WIRED | 12" | 16 OHMS |
| VOX AC4C1-12 | 12" | 16 OHMS |
| VOXWAREHOUSE LIMITED EDITION AC15 CUSTOM | 12" | 16 OHMS |
| VOX AC30S1 (1x12 Vox AC30) | 12" | 16 OHMS |
| VOX MVX150C1 | 12" | 8 OHMS |
Peavey Guitar Amplifier Speaker Guide
If you own a Peavey amplifier, the following list applies to you. This list will cover the solid-state, modeling, and tube amplifiers. Each amplifier has speaker size and ohm rating listed below. Many of the Classic and Delta Blues series of amplifiers can be switched from 4, 8, or 16 OHMs or have the optional output. The list reflects the standard settings and speaker loaded in the amplifiers.
Some of the peavey amplifiers have 8-ohm speakers working together at 16 OHMs. This OHM rating reflects the output rating of the amplifier as connected by the speaker jack.
For those of you that own a Peavey Bandit, check out my list for the best Peavey Bandit Speakers.
| Peavey Amplifier | Speaker Size | Speaker OHM Rating |
|---|---|---|
| Peavey Studio Pro 112 (all versions) | 12″ | 8 OHMS |
| Peavey Bandit 112 (all versions) | 12″ | 8 OHMS |
| Peavey 6505 Plus | 12″ | 8 OHMS |
| Peavey Delta Blues 2×10 | 10″ | 16 OHMS |

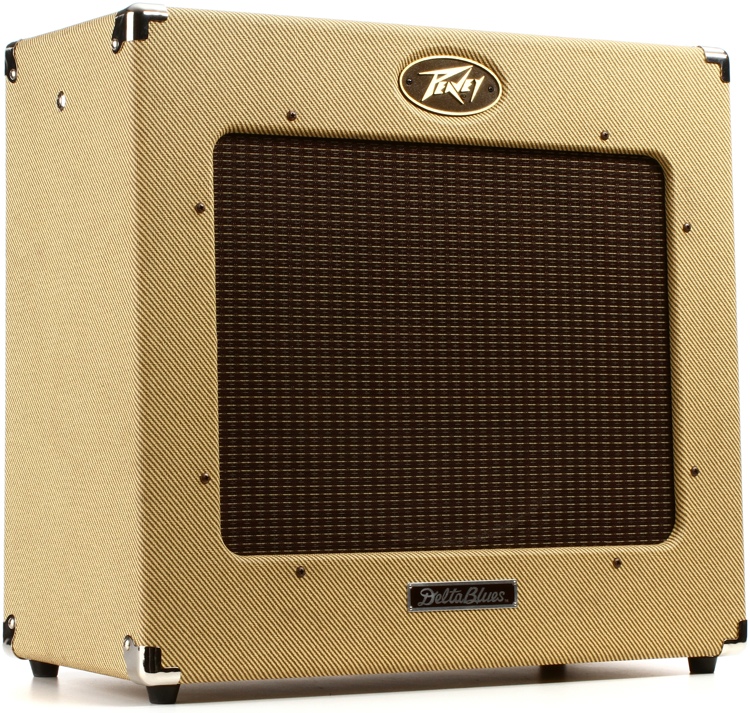

| Peavey Delta Blues 1×15 | 15″ | 16 OHMS |
| Peavey Classic 50 4×10 | 10″ | 16 OHMS |
| Peavey Classic 50 2×12 | 12″ | 16 OHMS |
| Peavey Classic 30 | 12″ | 16 OHMS |
| Peavey Vyper VIP 2 | 12″ | 8 OHMS |
| Peavey Vyper VIP 3 | 12″ | 8 OHMS |
| Peavey Vyper Pro 100 | 12″ | 16 OHMS |
| Peavey Envoy | 10″ | 8 OHMS |
| Peavey Rage | 8″ | 4 OHMS |
| Amplifier | Speaker Size | Speaker OHM Rating |
| Peavey Studio Pro 112 (all versions) | 12″ | 8 OHMS |
| Peavey Bandit 112 (all versions) | 12″ | 8 OHMS |
| Peavey 6505 Plus | 12″ | 8 OHMS |
| Peavey Delta Blues 2×10 | 10″ | 16 OHMS |
| Peavey Delta Blues 1×15 | 15″ | 16 OHMS |
Boss and Roland Guitar Amplifier Speaker Guide
Boss Amplifiers on Sweetwater Roland and Boss guitar amplifiers are some of the best solid-state or digital modeling amps. These have stood the test of time being great amplifiers. Those with a Boss Katana 100, I encourage you to check out my best speakers’ buyers guide for a Boss Katana article.
| Boss/Roland Amplifier | Speaker Size | Speaker OHM Rating |
|---|---|---|
| Boss Katana 50 | 12″ | 4 OHMS |
| Boss Katana 100 1×12 | 12″ | 8 OHMS |
| Boss Katana 100 2×12 | 12″ | 8 OHMS |
| Boss Katana 50 MKII (MK2) | 12″ | 4 OHMS |
| Boss Katana 100 MKII 1×12 (MK2) | 12″ | 8 OHMS |
| BOSS Katana 100 2×12 MKII (MK2) | 12″ | 8 OHMS |
| Roland Jazz Chorus 40 | 10″ | 4 OHMS (each) |
| Roland Jazz Chorus 120 | 12″ | 8 OHMS |
Mesa Boogie Amplifier Speaker Guide
This list will continue to grow as I add more speakers and brands to the list. This list below covers all of the current series of Mesa-Boogie combo amplifiers. Mesa Boogie makes some of the best amplifiers on the planet for rock guitarists.
| Mesa Boogie Amplifier | Speaker Size | Speaker OHM Rating |
|---|---|---|
| Mesa Boogie Fillmore 25 | 12" | 8 OHMS |

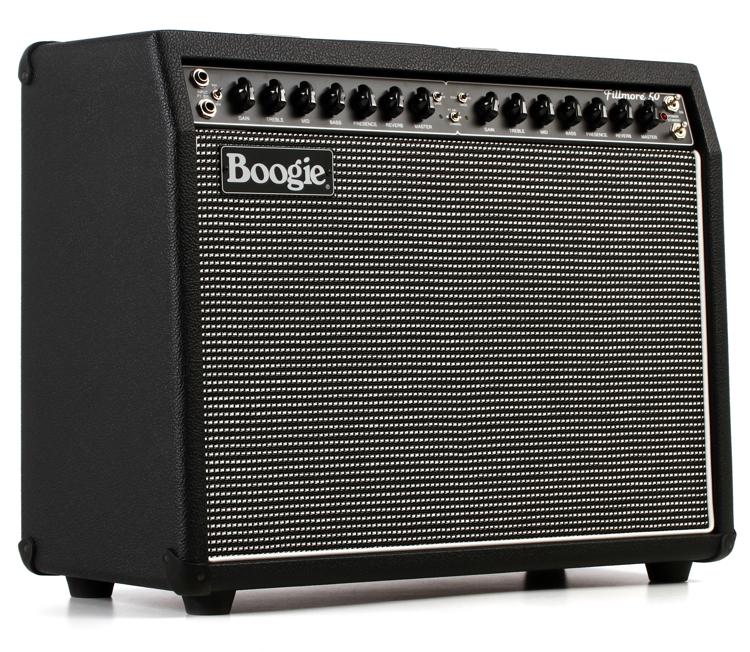

| Mesa Boogie Fillmore 50 | 12" | 8 OHMS |
| Mesa Boogie Fillmore 100 | 12" | 8 OHMS |
| Mesa Boogie California Tweed 4:40 | 12" | 8 OHMS |
| Mesa Boogie Mark Five | 12" | 8 OHMS |
| Mesa Boogie Mark Five:35 | 12" | 8 OHMS |
Yorkville Traynor Guitar Amplifier Speaker Guide
If you can’t decide on a replacement speaker for a Yorkville Traynor amplifier, see my recommendations for the Best 5 Yorkville Traynor Replacement Speakers.
| Yorkville Traynor Amplifier | Speaker Size | Speaker OHM Rating |
|---|---|---|
| Yorkville Traynor YCV40 | 12" | 8 OHMS |
| Yorkville Traynor YC50B | 12" | 8 OHMS |
| Yorkville Traynor YCV20WR | 12" | 8 OHMS |
| Yorkville Traynor YGL2 | 12" | 8 OHMS |
| Yorkville Traynor YCV80Q | 10" | 8 OHMS |
Yorkville Traynor amplifiers are made in Canada and are great gigging amplifiers for the working musician. These are very similar to Fender amplifiers in their functionality, but they do sound quite different.
